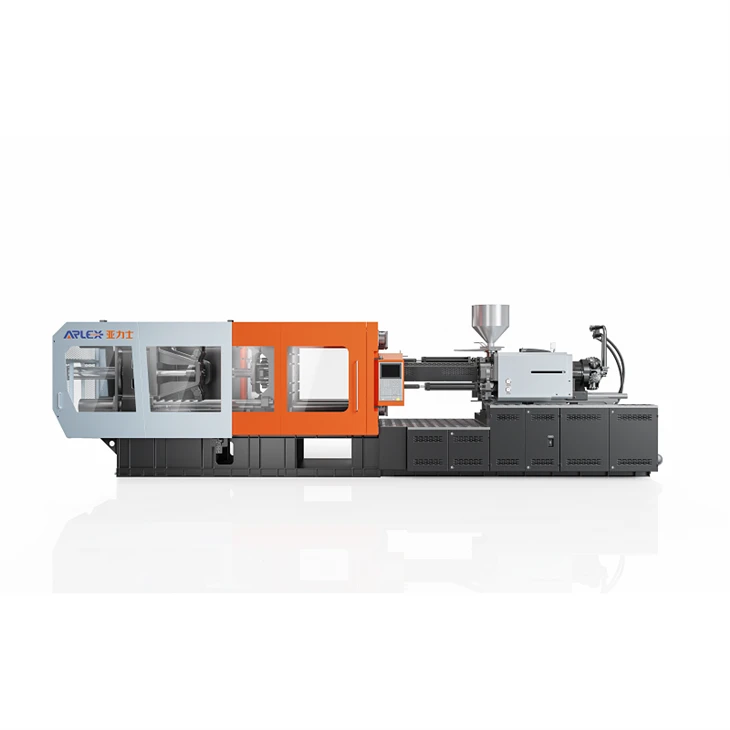

358T Plastic Injection Moulding Machine
AX358 General-Purpose Injection Molding Machine for Stable and Efficient Plastic Production
Ningbo Yalishi(Arlex) Plastic Machinery Co., Ltd. is one of the leading manufacturers and suppliers of 358t plastic injection moulding machine in China. Please feel free to wholesale advanced 358t plastic injection moulding machine made in China here from our factory.
Ningbo Yalishi(Arlex) Plastic Machinery Co., Ltd. is one of the leading manufacturers and suppliers of 358t plastic injection moulding machine in China. Please feel free to wholesale advanced 358t plastic injection moulding machine made in China here from our factory.
AX358 General-Purpose Injection Molding Machine for Stable and Efficient Plastic Production
The ARLEX AX358 is a 3580 kN plastic injection molding machine designed for stable and efficient production of medium-to-large plastic products. With flexible screw configurations, a rigid clamping unit and servo hydraulic control, the machine can be configured for different materials, molds and production requirements.
3580 kN
Clamping Force
60 / 65 / 70 mm
Screw Diameter
823–1118g (PS)
Injection Weight
General-Purpose
Machine Type
Product Overview
358T Injection Molding Machine for Flexible Industrial Production
Choosing an injection molding machine is not simply about selecting a clamping force. Injection capacity, screw configuration, mold dimensions, material, product weight and required cycle time all affect the final machine configuration.
The ARLEX AX358 provides 3580 kN of clamping force and is available with 60 mm, 65 mm and 70 mm screw configurations. This allows the injection unit to be matched to different product weights, materials and molding requirements.
The AX358 is designed as a general-purpose injection molding machine for manufacturers producing medium-to-large plastic components in continuous production environments.
Designed for Different Production Requirements
Flexible Injection Configuration
60 / 65 / 70 mm screw options allow the injection unit to be matched to different product weights and processing requirements.
01
Different Material Requirements
The AX358 can be configured for commonly used thermoplastics such as PP, PE, ABS and selected engineering plastics.
02
Different Mold Requirements
The 3580 kN clamping unit provides sufficient mold space and clamping force for a wide range of medium-to-large plastic products.
03
Continuous Production
The servo hydraulic system and rigid machine structure are designed for stable operation in continuous production environments.
04
Applications
Applications of the 358T Injection Molding Machine
Plastic Buckets & Containers
The AX358 can be configured for the production of plastic buckets, containers and other medium-to-large molded products according to product weight, mold dimensions and cycle requirements.
Household Plastic Products
Suitable for manufacturers producing household products from commonly used thermoplastics such as PP and PE.
Industrial Plastic Components
The 358T provides the clamping force and mold space required for many industrial injection molding applications.
Automotive Plastic Parts
The AX358 can be configured for selected automotive components according to product weight, mold dimensions and material requirements.

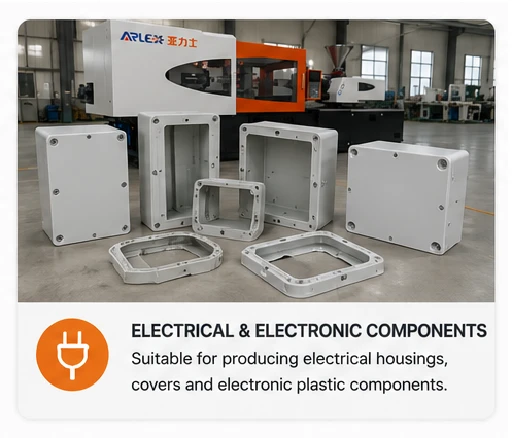

Electrical & Electronic Components
The machine can process commonly used thermoplastics and selected engineering plastics for electrical and electronic components, subject to the required screw and barrel configuration.
Packaging Products
Suitable for selected packaging applications where injection capacity, mold configuration and production cycle requirements match the machine capabilities.
Why Choose AX358
Why Choose the ARLEX AX358?
The 3580 kN clamping unit is designed to maintain stable mold locking during continuous production. The reinforced platen structure helps distribute clamping force across the mold area and supports consistent molding performance.
Benefits
• Stable mold locking
• Reduced platen deformation
• Improved mold protection
• Suitable for larger molds
• Consistent production performance
The AX358 is available with 60 mm, 65 mm and 70 mm screw configurations. Different screw diameters provide different combinations of injection weight, pressure and injection rate.
Available Screw Diameters
60 mm / 65 mm / 70 mm
The servo hydraulic system adjusts motor output according to actual machine demand. This helps reduce unnecessary energy consumption during periods when full hydraulic power is not required while maintaining stable machine response.
Benefits
• Energy-efficient operation
• Stable hydraulic response
• Reduced unnecessary power consumption
• Suitable for continuous production
Injection speed and pressure can be controlled according to different stages of the molding process, giving operators greater flexibility when optimizing filling, holding pressure, screw position and cycle time.
The AX358 is designed for industrial production environments where machines may operate for extended production cycles. Its mechanical structure, hydraulic system and configurable injection unit provide a balanced solution for productivity, stability and operating efficiency.
Technical Specifications
| Model | AXQ-358T |
| Screw Diameter | 50 mm |
| Shot Size(Theoretical) | 422 cm³ |
| Injection Weight(PS) | 402 g |
| Injection Rate | 456 g/s |
| Injection Pressure | 154 MPa |
| Screw Speed | 0-350 rpm |
| Clamp Tonnage | 3580 kN |
| Toggle Stroke | 610 mm |
| Space Between Tie Bars | 675*675 mm |
| Max Mold Height | 720 mm |
| Min Mold Height | 250 mm |
Screw Configuration
Which AX358 Screw Configuration Should You Choose?
60 mm Screw - AX358-A
The 60 mm screw configuration provides the highest injection pressure among the three options and can be considered when injection pressure is an important requirement for the application.
65 mm Screw - AX358-B
The 65 mm screw provides a balanced combination of injection capacity, injection pressure and plasticizing performance, making it a versatile configuration for general-purpose production.
70 mm Screw - AX358-C
The 70 mm screw provides the highest theoretical shot size and injection rate among the three AX358 configurations and can be considered for applications requiring greater injection capacity.
The final screw configuration should be selected according to product weight, material, mold design, required injection pressure and cycle time.
How to Select the Machine
How to Select the Right 358T Injection Molding Machine Configuration
Product Weight
Product weight is one of the key factors in selecting the injection unit. The required shot size should provide sufficient capacity for the product, runner and process requirements.
01
Plastic Material
Different materials have different processing characteristics. Screw and barrel specifications should be selected according to the material being processed.
02
Mold Dimensions
Mold width, height, tie-bar spacing and mold opening requirements should all be checked before selecting the machine.
03
Required Cycle Time
Higher production requirements may require a suitable combination of injection speed, plasticizing capacity and machine response.
04
Product Application
The machine configuration should ultimately be determined by the actual product and production process rather than clamping force alone.
05
Machine Details
AX358 Machine Details
Clamping Unit
Clamping Force Technology
Reinforced cast iron construction ensures superior platen rigidity and extends mold service life. Easy-to-handle and adjust processes can minimize losses and increase precision and stability to the greatest extent Enables the turntable to rotate smoothly without impact and position accurately. Advanced digital closed-loop positioning control system ensures precise motion accuracy and stable repeatability. The turntable is designed to reduce frictional loss, increase the movement reliability, and prolong the life of the turntable.
Injection Unit
Modular injection unit combination
Custom configurations can be achieved through modular injection unit combinations tailored to specific process requirements, supported by adaptable and scalable software functionalities. Specially engineered screw designs are available for processing PET, PC, PMMA, PVC, PA, PPS, and other engineering thermoplastics. The dual-cylinder balancing injection mechanism enhances the reliability and pressure capacity of the injection unit. Featuring self-adaptive temperature control technology, the system achieves static temperature accuracy of up to ±0.4 °C.
Control System
A high-performance and fast-response industrial controller designed for multi-component injection molding machines enables precise and synchronized control of multiple injection units. Through real-time synchronous communication, production data is seamlessly exchanged with the rotary table system, ensuring accurate positioning and stable coordinated operation. Remote online production monitoring Statistical process control for multiple injection units Configuration and tracking of critical motion curves Early deceleration and precise positioning control Built-in hot runner control expansion capability Integrated control of auxiliary equipment systems
Servo Motor System
Equipped with a high-precision pressure sensor, rotary encoder, and pressure transducer, the system enables independent monitoring and control of flow and pressure parameters. Based on real-time feedback, the high-performance synchronous servo motor automatically adjusts output flow and pressure by regulating speed and torque. This closed-loop control system ensures stable operation and consistent product quality. During the cooling phase, the motor remains inactive, resulting in zero power consumption. Compared with conventional injection molding machines, energy savings of 30%–80% can be achieved.
Hydraulic System
Stable Pressure Control – Maintains consistent injection and holding pressure for repeatable molding quality.
Fast Dynamic Response – Provides rapid hydraulic response during injection, clamping, and mold opening/closing.
Efficient Power Management – Servo-driven hydraulic control supplies power according to actual production demand, reducing unnecessary energy consumption.
Smooth Operation – Optimized hydraulic circuits help minimize pressure fluctuations and mechanical impact.
Reliable for Continuous Production – Designed for stable long-term operation in demanding industrial applications.
Factory / Production
358T Injection Molding Machine Built at ARLEX
Every ARLEX injection molding machine is assembled and tested before shipment. Machine assembly, hydraulic systems, electrical components and injection units are inspected during the manufacturing process.
For customized projects, ARLEX engineers can adjust the machine configuration according to the customer's product, mold and production requirements.
Customization
358T Injection Molding Machine Configuration
Different production requirements may require different machine configurations. ARLEX can provide configuration recommendations according to the product, mold, material and factory requirements.
Configuration Factors
Screw diameter
Screw and barrel configuration
Injection pressure
Injection speed
Hydraulic system
Control system
Voltage and frequency
Auxiliary equipment
Automation requirements
Tell Us Your Product Requirements
FAQ
358T Injection Molding Machine FAQ
What does 358T mean in an injection molding machine?
+
-
358T refers to the nominal clamping force of the machine. The ARLEX AX358 provides 3580 kN of clamping force.
What products can a 358T injection molding machine produce?
+
-
A 358T machine can be used for a wide range of medium-to-large plastic products, including buckets, containers, household products, industrial components, automotive parts and electrical housings. The actual application depends on product weight, mold dimensions, material and cycle time.
Is the AX358 suitable for plastic bucket production?
+
-
The AX358 can be suitable for bucket production when the product weight, mold dimensions, cavity layout and required production cycle fall within the machine's injection and clamping capabilities.
What screw diameters are available for the AX358?
+
-
The AX358 is available with 60 mm, 65 mm and 70 mm screw configurations.
Can the AX358 process PP and PE?
+
-
The AX358 can be configured for commonly used thermoplastics such as PP and PE. The appropriate screw and barrel configuration should be selected according to the material and production requirements.
How do I know whether 358T is suitable for my product?
+
-
Provide the product drawing or sample, product weight, material, mold dimensions, cavity number and target cycle time. ARLEX engineers can evaluate the requirements and recommend the appropriate machine configuration.
Can ARLEX customize the 358T machine?
+
-
Yes. Machine configuration can be adjusted according to production requirements, including screw configuration, control system, voltage, auxiliary equipment and automation requirements.
Download Brochure
Download AX358 358T Injection Molding Machine Brochure
Download the AX358 technical brochure for detailed machine specifications, configurations and application information.
