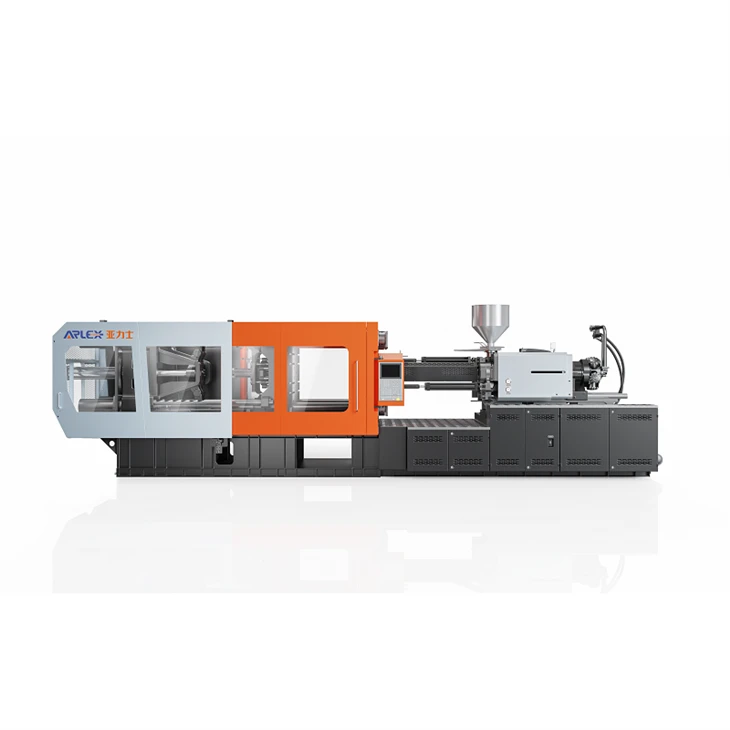

408T Plastic Injection Moulding Machine
AX408 General-Purpose Injection Molding Machine for Stable and Efficient Plastic Production
Ningbo Yalishi(Arlex) Plastic Machinery Co., Ltd. is one of the leading manufacturers and suppliers of 408t plastic injection moulding machine in China. Please feel free to wholesale advanced 408t plastic injection moulding machine made in China here from our factory.
AX408 General-Purpose Injection Molding Machine
The ARLEX AX408 is a 4080 kN general-purpose injection molding machine designed for stable and efficient production of medium-to-large plastic components.
With flexible screw configurations, a rigid clamping structure and servo hydraulic control, the AX408 can be configured according to different product weights, materials, mold dimensions and production requirements.
The machine is suitable for a wide range of industrial plastic molding applications where stable operation, reliable performance and consistent production are required.
4080 kN
Clamping Force
70 / 75 / 80 mm
Screw Diameter
1243–1625g (PS)
Injection Weight
General-Purpose
Machine Type
Product Overview
408T Injection Molding Machine for Flexible Industrial Production
Choosing an injection molding machine is not simply about selecting clamping force. Injection capacity, screw configuration, mold dimensions, material, product weight and required cycle time all affect the final machine configuration.
The ARLEX AX408 provides 4080 kN of clamping force and is available with 70 mm, 75 mm and 80 mm screw configurations. This allows the injection unit to be matched to different product weights, materials and molding requirements.
The AX408 is designed as a general-purpose injection molding machine for manufacturers producing medium-to-large plastic components in continuous production environments.
Flexible Injection Configuration
70 mm, 75 mm and 80 mm screw options provide different combinations of injection capacity, injection pressure and injection rate.
01
Different Material Requirements
The AX408 can be configured for commonly used thermoplastics such as PP, PE, ABS and selected engineering plastics according to material and processing requirements.
02
Different Mold Requirements
The 4080 kN clamping unit provides 730 × 730 mm space between tie bars and supports molds with a maximum height of 750 mm.
03
Continuous Production
The rigid machine structure and servo hydraulic system are designed to support stable operation during extended production cycles.
04
Applications
Applications of the 408T Injection Molding Machine
Plastic Buckets & Containers
Suitable for producing medium-to-large plastic buckets, containers, storage boxes and other rigid plastic products requiring reliable molding performance and consistent product quality.
Household Plastic Products
Suitable for a wide range of household products, including storage boxes, stools, chairs, baskets and other durable plastic items for daily use.
Industrial Plastic Components
Ideal for producing industrial housings, brackets, covers, structural components and other functional plastic parts requiring stable production and reliable mechanical performance.
Automotive Plastic Parts
Suitable for producing automotive interior and exterior components, brackets, covers, housings and other medium-to-large plastic parts used in automotive applications.
Electrical & Electronic Components
Suitable for producing electrical housings, connector components, switch parts, protective covers and other plastic components used in electrical and electronic equipment.
Why Choose the ARLEX AX408?
Rigid Clamping Unit
The 4080 kN clamping unit is designed to provide stable mold locking and reliable performance during continuous production. The rigid platen structure helps maintain consistent clamping conditions and reduce deformation.
Benefits
• Stable mold locking
• Reduced platen deformation
• Reliable mold protection
• Suitable for larger molds
• Consistent production
01
Flexible Injection Unit
The AX408 is available with 70 mm, 75 mm and 80 mm screw configurations. Different screw diameters provide different combinations of injection weight, pressure and injection rate.
Available Screw Diameters
70 mm / 75 mm / 80 mm
02
Servo Hydraulic System
The servo hydraulic system adjusts motor output according to actual machine demand, helping reduce unnecessary energy consumption while maintaining stable machine response.
Benefits
• Energy-efficient operation
• Stable hydraulic response
• Reduced unnecessary power consumption
• Suitable for continuous production
03
Precise Injection Control
Injection speed and pressure can be controlled according to different stages of the molding process, giving operators greater flexibility when optimizing filling, holding pressure, screw position and cycle time.
04
Designed for Continuous Production
The AX408 combines a rigid mechanical structure, stable hydraulic system and flexible injection configuration to provide a reliable solution for continuous industrial plastic production.
05
Technical Specifications
AX408 Technical Specifications
| Model | AX408-A | AX408-B | AX408-C |
| Screw Diameter | 70 mm | 75 mm | 80 mm |
| Screw L/D Ratio | 22.5 | 21 | 19.7 |
| Shot Size(Theoretical) | 1366 cm3 | 1567 cm3 | 1786 cm3 |
| Injection Weight(PS) | 1243 g | 1426 g | 1625 g |
| Injection Rate | 313 g/s | 360 g/s | 411 g/s |
| Plasticizing Capacity | 41 g/s | 45 g/s | 49 g/s |
| Injection Pressure | 199 MPa | 173 MPa | 152 MPa |
| Screw Speed | 0-160 rpm | 0-160 rpm | 0-160 rpm |
| Clamp Tonnage | 4080 kN | 4080 kN | 4080 kN |
| Toggle Stroke | 720 mm | 720 mm | 720 mm |
| Space Between Tie Bars | 730*730 mm | 730*730 mm | 730*730 mm |
| Max Mold Height | 750 mm | 750 mm | 750 mm |
| Min Mold Height | 250 mm | 250 mm | 250 mm |
Screw Configuration
Which AX408 Screw Configuration Should You Choose?
70 mm Screw – AX408-A
Injection Weight: 1243 g (PS)
Injection Rate: 313 g/s
Injection Pressure: 199 MPa
The 70 mm screw provides the highest injection pressure among the three AX408 configurations and can be considered for applications requiring higher injection pressure with a moderate shot size.
75 mm Screw – AX408-B
Injection Weight: 1426 g (PS)
Injection Rate: 360 g/s
Injection Pressure: 173 MPa
The 75 mm screw provides a balanced combination of injection capacity, injection pressure and injection rate, making it a versatile configuration for general-purpose production.
80 mm Screw – AX408-C
Injection Weight: 1625 g (PS)
Injection Rate: 411 g/s
Injection Pressure: 152 MPa
The 80 mm screw provides the highest theoretical shot size and injection rate among the three AX408 configurations and can be considered for applications requiring greater injection capacity.
The final screw configuration should be selected according to product weight, material, mold design, required injection pressure and cycle time.
How to Select the Machine
How to Select the Right 408T Injection Molding Machine Configuration
Product Weight: Product weight is one of the key factors in selecting the injection unit. The required shot size should provide sufficient capacity for the product, runner and process requirements.
Plastic Material: Different materials have different processing characteristics. Screw and barrel specifications should be selected according to the material being processed.
Mold Dimensions: Mold width, height, tie-bar spacing and mold opening requirements should all be checked before selecting the machine.
Required Cycle Time: Production requirements may require an appropriate combination of injection speed, plasticizing capacity and machine response.
Product Application: The machine configuration should ultimately be determined by the actual product and production process rather than clamping force alone.
Machine Details
AX408 Machine Details
Clamping Unit
The reinforced clamping structure provides high rigidity and stable mold locking performance, helping maintain consistent molding conditions during continuous production.
Injection Unit
The injection unit is available with 70 mm, 75 mm and 80 mm screw configurations, providing different injection capacities, pressures and injection rates for different production requirements.
Control System
The industrial control system provides intuitive operation and precise control of key molding parameters, helping operators manage injection speed, pressure, position and temperature.
Servo Motor System
The servo hydraulic system adjusts motor output according to actual machine demand, supporting stable operation and improved energy efficiency during production.
Hydraulic System
The optimized hydraulic system provides stable pressure control and fast dynamic response during injection, clamping and mold opening and closing.
Factory / Production
408T Injection Molding Machine Built at ARLEX
Every ARLEX injection molding machine is assembled and tested before shipment. Machine assembly, hydraulic systems, electrical components and injection units are inspected during the manufacturing process.
For customized projects, ARLEX engineers can adjust the machine configuration according to the customer's product, mold and production requirements.
Customization
408T Injection Molding Machine Configuration
Different production requirements may require different machine configurations. ARLEX can provide configuration recommendations according to the product, mold, material and factory requirements.
Configuration Factors
Screw diameter
Screw and barrel configuration
Injection pressure
Injection speed
Hydraulic system
Control system
Voltage and frequency
Auxiliary equipment
Automation requirements
Tell Us Your Product Requirements
FAQ
408T Injection Molding Machine FAQ
What does 408T mean in an injection molding machine?
+
-
408T refers to the nominal clamping force of the machine. The ARLEX AX408 provides 4080 kN of clamping force.
What products can a 408T injection molding machine produce?
+
-
The AX408 can be used for a wide range of medium-to-large plastic products, including buckets, containers, household products, industrial components, automotive parts and electrical and electronic components. The actual application depends on product weight, mold dimensions, material and cycle time.
What screw diameters are available for the AX408?
+
-
The AX408 is available with 70 mm, 75 mm and 80 mm screw configurations.
What is the injection weight of the AX408?
+
-
The injection weight ranges from 1243 g to 1625 g (PS), depending on the selected screw configuration.
What is the injection rate of the AX408?
+
-
The injection rate ranges from 313 g/s to 411 g/s depending on the screw configuration.
Can the AX408 process PP and PE?
+
-
Yes. The AX408 can be configured for commonly used thermoplastics such as PP and PE. The appropriate screw and barrel configuration should be selected according to the material and production requirements.
How do I know whether 408T is suitable for my product?
+
-
Provide the product drawing or sample, product weight, material, mold dimensions, cavity number and target cycle time. ARLEX engineers can evaluate the requirements and recommend the appropriate machine configuration.
Can ARLEX customize the 408T machine?
+
-
Yes. Machine configuration can be adjusted according to production requirements, including screw configuration, control system, voltage, auxiliary equipment and automation requirements.
Download Brochure
Download AX408 408T Injection Molding Machine Brochure
Download the AX408 technical brochure for detailed machine specifications, screw configurations and application information.
