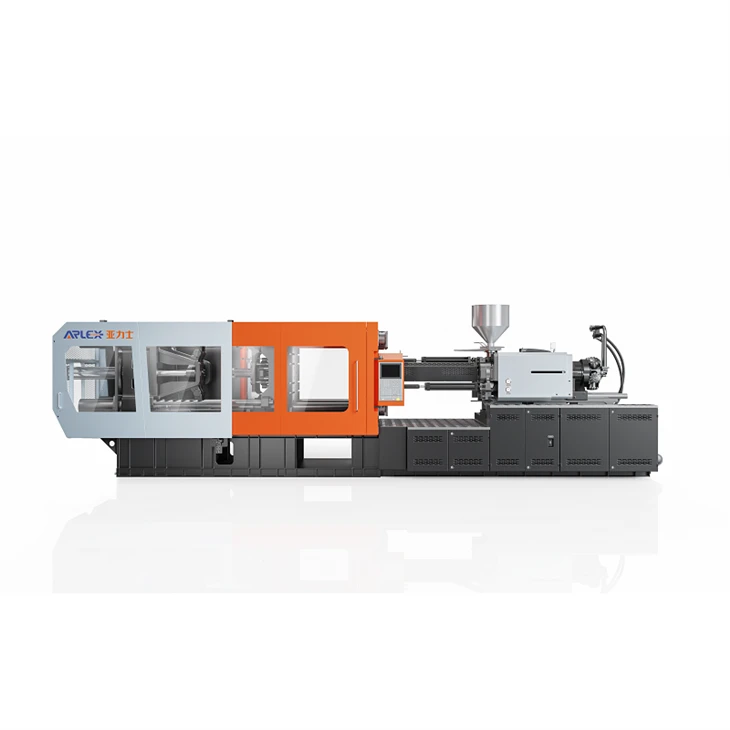

478T Plastic Injection Moulding Machine
AX478 General-Purpose Injection Molding Machine for Stable and Efficient Plastic Production
Ningbo Yalishi(Arlex) Plastic Machinery Co., Ltd. is one of the leading manufacturers and suppliers of 478t plastic injection moulding machine in China. Please feel free to wholesale advanced 478t plastic injection moulding machine made in China here from our factory.
AX478 General-Purpose Injection Molding Machine
The ARLEX AX478 is a 4780 kN general-purpose injection molding machine designed for stable and efficient production of medium-to-large plastic components.
With flexible screw configurations, a rigid clamping structure and a servo hydraulic system, the AX478 can be configured according to different product weights, materials, mold dimensions and production requirements.
The machine is suitable for a wide range of industrial plastic molding applications requiring reliable operation, consistent molding performance and continuous production.
4780 kN
Clamping Force
75 / 80 / 85 mm
Screw Diameter
1568–2014g (PS)
Injection Weight
General-Purpose
Machine Type
Product Overview
AX478 General-Purpose Injection Molding Machine
Selecting an injection molding machine requires more than simply considering clamping force. Product weight, material, mold dimensions, injection capacity, injection pressure and required cycle time all affect the appropriate machine configuration.
The AX478 provides 4780 kN of clamping force and is available with 75 mm, 80 mm and 85 mm screw configurations. These options provide different combinations of injection capacity, injection pressure and injection rate for different production requirements.
The AX478 is designed as a general-purpose injection molding machine for manufacturers producing medium-to-large plastic components in continuous production environments.
Flexible Injection Configuration
75 mm, 80 mm and 85 mm screw options provide different combinations of injection capacity, injection pressure and injection rate.
01
Different Material Requirements
The AX478 can be configured for commonly processed thermoplastics according to material characteristics and production requirements.
02
Different Mold Requirements
The 4780 kN clamping unit provides 780 × 780 mm space between tie bars and supports molds with a maximum height of 800 mm.
03
Continuous Production
The rigid machine structure and servo hydraulic system are designed to support stable and reliable operation during extended production cycles.
04
Applications
Applications of the 478T Injection Molding Machine
Plastic Buckets & Containers
Suitable for producing medium-to-large plastic buckets, containers, storage boxes and other rigid plastic products requiring reliable molding performance and consistent product quality.
Household Plastic Products
Suitable for storage boxes, stools, chairs, baskets and other durable household plastic products for daily use.
Industrial Plastic Components
Ideal for producing industrial housings, covers, brackets, structural components and other functional plastic parts.
Automotive Plastic Parts
Suitable for automotive interior and exterior components, housings, brackets, covers and other medium-to-large plastic parts.
Electrical & Electronic Components
Suitable for producing electrical housings, connector components, switch parts and protective covers for electrical and electronic equipment.
Why Choose the ARLEX AX478?
Rigid Clamping Unit
The 4780 kN clamping unit provides stable mold locking performance for medium-to-large molds and continuous production applications.
01
Flexible Injection Unit
Three screw configurations-75 mm, 80 mm and 85 mm-provide different injection capacities, pressures and rates for different production requirements.
02
Servo Hydraulic System
The servo hydraulic system adjusts motor output according to actual machine requirements, helping improve energy efficiency while maintaining stable machine operation.
03
Stable Injection Control
Accurate control of injection speed, pressure and position helps maintain consistent molding conditions and product quality.
04
Designed for Continuous Production
The AX478 combines a rigid mechanical structure, stable hydraulic system and flexible injection configurations for reliable long-term production.
05
Technical Specifications
AX478 Technical Specifications
| Model | AX478-A | AX478-B | AX478-C |
| Screw Diameter | 75 mm | 80 mm | 85 mm |
| Screw L/D Ratio | 22.3 | 21 | 19.7 |
| Shot Size(Theoretical) | 1723 cm3 | 1960 cm3 | 2213 cm3 |
| Injection Weight(PS) | 1568 g | 1784 g | 2014 g |
| Injection Rate | 385 g/s | 440 g/s | 500 g/s |
| Plasticizing Capacity | 44 g/s | 52 g/s | 61 g/s |
| Injection Pressure | 186 MPa | 164 MPa | 145 MPa |
| Screw Speed | 0-160 rpm | 0-160 rpm | 0-160 rpm |
| Clamp Tonnage | 4780 kN | 4780 kN | 4780 kN |
| Toggle Stroke | 770 mm | 770 mm | 770 mm |
| Space Between Tie Bars | 780*780 mm | 780*780 mm | 780*780 mm |
| Max Mold Height | 800 mm | 800 mm | 800 mm |
| Min Mold Height | 300 mm | 300 mm | 300 mm |
Screw Configuration
Which AX478 Screw Configuration Should You Choose?
75 mm Screw – AX478-A
Injection Weight: 1568 g (PS)
Injection Rate: 385 g/s
Injection Pressure: 186 MPa
The 75 mm screw provides the highest injection pressure among the three AX478 configurations and can be considered for applications requiring higher injection pressure with a moderate shot size.
80 mm Screw – AX478-B
Injection Weight: 1784 g (PS)
Injection Rate: 440 g/s
Injection Pressure: 164 MPa
The 80 mm screw provides a balanced combination of injection capacity, injection pressure and injection rate, making it a versatile configuration for general-purpose plastic production.
85 mm Screw – AX478-C
Injection Weight: 2014 g (PS)
Injection Rate: 500 g/s
Injection Pressure: 145 MPa
The 85 mm screw provides the highest injection capacity and injection rate among the three AX478 configurations and can be considered for applications requiring greater shot size and material throughput.
The final screw configuration should be selected according to product weight, material, mold design, required injection pressure and production cycle.
How to Select the Machine
How to Select the Right 478T Injection Molding Machine Configuration
Product Weight: Product weight and runner weight determine the required injection capacity and appropriate screw configuration.
Plastic Material: Different plastic materials have different processing characteristics. Screw and barrel specifications should be selected accordingly.
Mold Dimensions: Check mold dimensions, tie-bar spacing, mold height and mold opening requirements before selecting the machine.
Required Cycle Time: Target cycle time affects injection rate, plasticizing capacity and overall machine configuration.
Production Requirements: Required production output and product application should be considered together when selecting the appropriate 478T configuration.
Send us your product weight, material, mold dimensions and target cycle time. ARLEX engineers can recommend the appropriate AX478 configuration.
Machine Details
AX478 Machine Details
Clamping Unit
The reinforced clamping structure provides high rigidity and stable mold locking performance, helping maintain consistent molding conditions during continuous production.
Injection Unit
The AX478 is available with 75 mm, 80 mm and 85 mm screw configurations, providing different injection capacities, pressures and injection rates for different production requirements.
Control System
The industrial control system provides intuitive operation and precise management of key molding parameters, helping operators optimize injection speed, pressure, position and temperature.
Servo Motor System
The servo hydraulic system adjusts motor output according to actual machine demand, supporting stable operation and improved energy efficiency.
Hydraulic System
The optimized hydraulic system provides stable pressure control and responsive operation during injection, clamping and mold opening and closing.
Factory / Production
478T Injection Molding Machine Built at ARLEX
Every ARLEX injection molding machine is assembled and tested before shipment. Machine assembly, hydraulic systems, electrical components and injection units are inspected during the manufacturing process.
For customized projects, ARLEX engineers can adjust the machine configuration according to the customer's product, mold and production requirements.
Customization
478T Injection Molding Machine Built at ARLEX
Every ARLEX injection molding machine is assembled and tested before shipment. Machine assembly, hydraulic systems, electrical components and injection units are inspected throughout the manufacturing process.
For customized projects, ARLEX engineers can adjust the machine configuration according to the customer's product, mold and production requirements.
Configuration Factors
Screw diameter
Screw and barrel configuration
Injection pressure
Injection speed
Hydraulic system
Control system
Voltage and frequency
Auxiliary equipment
Automation requirements
Tell Us Your Product Requirements
FAQ
478T Injection Molding Machine FAQ
What does 478T mean in an injection molding machine?
+
-
478T refers to the nominal clamping force of the machine. The ARLEX AX478 provides 4780 kN of clamping force.
What products can a 478T injection molding machine produce?
+
-
The AX478 can produce a wide range of medium-to-large plastic products, including buckets, containers, household products, industrial components, automotive parts and electrical and electronic components.
What screw diameters are available for the AX478?
+
-
The AX478 is available with 75 mm, 80 mm and 85 mm screw configurations.
What is the injection weight of the AX478?
+
-
The injection weight ranges from 1568 g to 2014 g (PS), depending on the selected screw configuration.
What is the injection rate of the AX478?
+
-
The injection rate ranges from 385 g/s to 500 g/s depending on the screw configuration.
How do I choose the right screw configuration?
+
-
Screw selection depends on product weight, material, mold design, required injection pressure, injection rate and production cycle.
What mold size can the AX478 accommodate?
+
-
The AX478 provides 780 × 780 mm space between tie bars and supports a maximum mold height of 800 mm.
Can the AX478 be customized?
+
-
Yes. Machine configuration can be adjusted according to product requirements, mold specifications, material, electrical requirements, auxiliary equipment and automation needs.
Download Brochure
Download AX478 478T Injection Molding Machine Brochure
Download the AX478 technical brochure for detailed machine specifications, screw configurations and production information.
