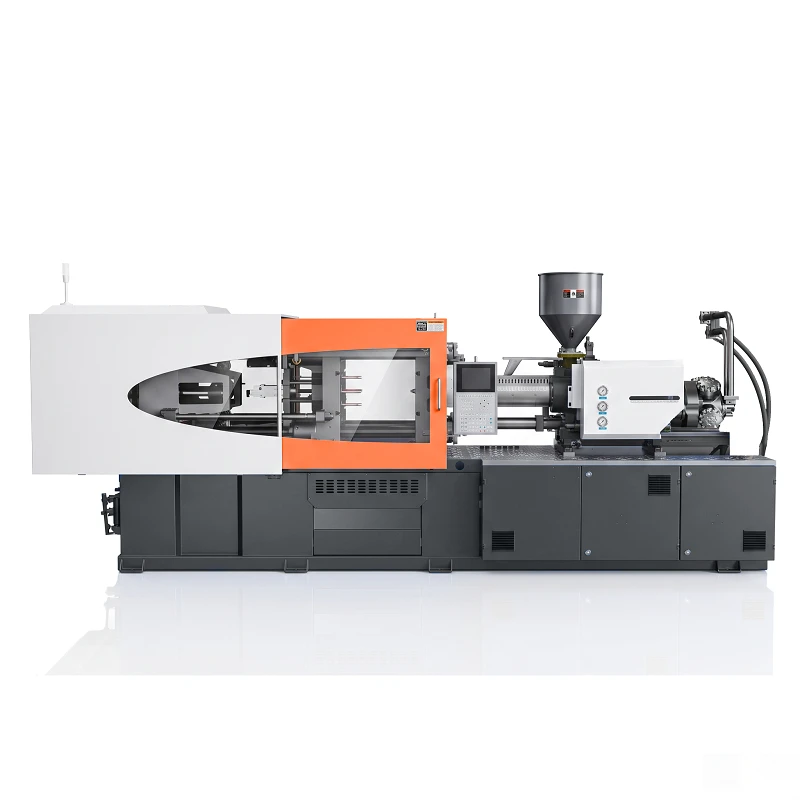

218T PET Plastic Injection Moulding Machine
AX218 PET Injection Molding Machine for Stable and Efficient PET Preform Production
Ningbo Yalishi(Arlex) Plastic Machinery Co., Ltd. is one of the leading manufacturers and suppliers of 218t pet plastic injection moulding machine in China. Please feel free to wholesale advanced 218t pet plastic injection moulding machine made in China here from our factory.
218T PET Injection Molding Machine for Bottle Preform Production
The ARLEX AX218 PET is a 2180 kN injection molding machine designed for efficient and stable PET preform production. Its dedicated injection configuration provides the injection capacity, pressure and plasticizing performance required for different PET preform applications.
With a rigid clamping structure, optimized injection system, stable hydraulic control and precise temperature management, the AX218 PET is suitable for continuous production of PET bottle preforms and other PET packaging components.
2180 kN
Clamping Force
65 mm
Screw Diameter
852 g
Injection Weight (PS)
486 g/s
Injection Rate
PET bottle preform
Machine Type
Product Overview
218T PET Injection Molding Machine for Bottle Preform Production
PET preform production requires more than sufficient clamping force. Injection capacity, injection speed, material processing conditions, mold configuration and cycle time all influence production efficiency and preform quality.
The AX218 PET is designed to provide a balanced injection and clamping configuration for PET preform applications. Machine configuration can be selected according to preform weight, cavity number, mold dimensions and required production output.
Designed for Different PET Preform Requirements
Preform Weight Requirements
The injection unit provides sufficient shot capacity for PET preforms with different weights and designs within the machine's processing range.
Multi-Cavity Production
The AX218 PET can be configured according to the required mold cavity number, preform weight and production output.
Injection Speed Requirements
Stable and responsive injection control helps maintain consistent filling performance across different PET preform applications.
PET Material Processing
The injection system is designed to provide stable plasticizing and temperature control for PET processing.
Continuous Production
A rigid machine structure and stable hydraulic system support reliable operation during continuous PET preform production.
Applications
Applications of the 218T PET Plastic Injection Moulding Machine
Water Bottle Preforms
Suitable for producing PET preforms used for bottled water and other drinking water packaging applications.
Carbonated Soft Drink Preforms
Suitable for PET preforms designed for carbonated soft drink bottles, where dimensional consistency and stable production are important.
Edible Oil Bottle Preforms
Suitable for producing PET preforms for edible oil bottles and other food packaging applications requiring different preform weights and designs.
Juice & Beverage Preforms
Suitable for PET preforms used for juice, tea, functional drinks and other beverage packaging applications.
Cosmetic & Personal Care Preforms
Suitable for producing PET packaging preforms for cosmetics, personal care products and other clear plastic containers.
Why Choose AX218 PET?
Dedicated PET Production Configuration
Designed around the processing requirements of PET preforms and packaging applications.
01
Stable Injection Performance
Provides controlled injection speed and pressure for consistent filling performance.
02
Rigid Clamping Structure
The reinforced clamping structure provides stable mold closing and reliable operation during continuous production.
03
Optimized Hydraulic System
The optimized hydraulic circuit reduces pressure loss and supports responsive and stable machine movement.
04
Flexible Preform Production
Machine configuration can be matched to different preform weights, mold configurations and production requirements.
05
Technical Specifications
AX218 Technical Specifications
| Model | AX218-PET |
| Screw Diameter | 65 mm |
| Shot Size(Theoretical) | 744 cm3 |
| Injection Weight(PS) | 852 g |
| Injection Rate | 486 g/s |
| plasticizing capacity | 73 g/s |
| Injection Pressure | 103 Mpa |
| Screw Speed | 0-175 rpm |
| Clamp Tonnage | 2180 KN |
| Toggle Stroke | 475 mm |
| Space Between Tie Bars | 520*520 mm |
| Max Mold Height | 520 mm |
| Min Mold Height | 200 mm |
Screw Configuration

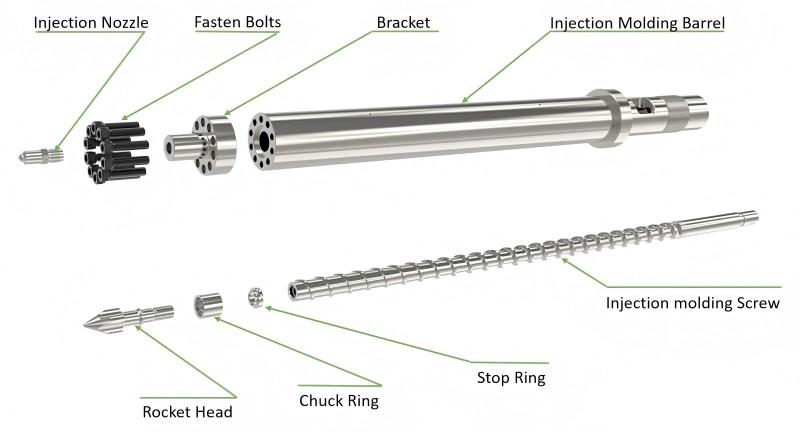

65 mm PET Screw Configuration
The AX218 PET is equipped with a 65 mm screw configuration, providing a balanced combination of injection capacity, injection pressure and plasticizing performance for PET preform production.
65 mm
744 cm³ Shot Size
852 g Injection Weight (PS)
486 g/s Injection Rate
The final screw configuration should be selected according to product weight, material, mold design, required injection pressure and cycle time.
How to Select the Machine
How to Select a PET Preform Injection Molding Machine
Preform Weight: Determine the required injection capacity based on the weight of a single preform.
Number of Cavities: The cavity number directly affects the required shot size and production output.
Required Output: Consider the target number of preforms per hour or per day when selecting machine and mold configuration.
Mold Dimensions: Make sure the mold dimensions and cavity layout are compatible with the machine's clamping and platen specifications.
PET Material & Processing Requirements: Consider resin grade, material condition and required processing parameters.
Cycle Time: The required cycle time should be considered together with injection speed, cooling requirements and mold configuration.
Not sure which PET injection molding machine you need? Send us your preform drawing, weight and cavity number for a recommended configuration.
Machine Details
Clamping Unit
The rigid clamping structure provides stable mold closing, accurate positioning and reliable support for PET preform molds during continuous production.
Injection Unit
The optimized injection unit provides stable injection speed, pressure and plasticizing performance for consistent PET preform filling.
Control System
The high-performance control system provides intuitive operation and precise control of injection, pressure, temperature and machine movement for stable PET preform production.
Servo Motor System
The servo drive system provides responsive machine operation and efficient power management while maintaining stable molding performance.

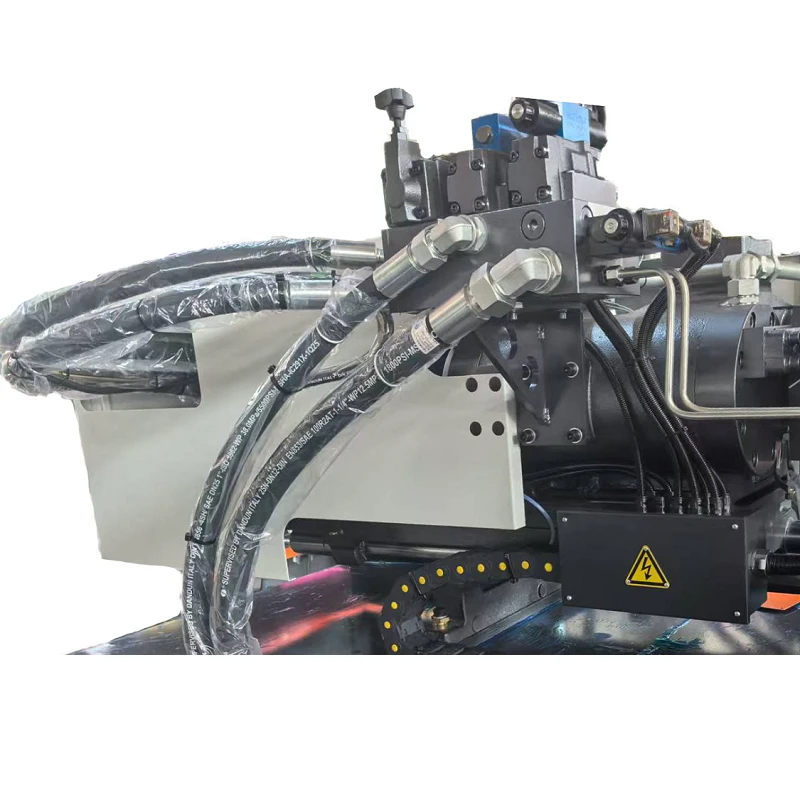

Hydraulic System
The optimized hydraulic circuit minimizes pressure loss and provides responsive control of clamping, mold movement and other machine operations.
Factory / Production
218T PET Injection Molding Machine Built at ARLEX
Every ARLEX injection molding machine is assembled and tested before shipment. Machine assembly, hydraulic systems, electrical components and injection units are inspected during the manufacturing process.
For customized projects, ARLEX engineers can adjust the machine configuration according to the customer's product, mold and production requirements.
Customization
218T Injection Molding Machine Configuration
PET Injection Molding Machine Customization
Every PET preform production line has different requirements. ARLEX can configure the machine according to preform weight, cavity number, mold dimensions, production output and material requirements.
Configuration Factors
Screw diameter
Screw and barrel configuration
Injection pressure
Injection speed
Hydraulic system
Control system
Voltage and frequency
Auxiliary equipment
Automation requirements
Tell Us Your Product Requirements
FAQ
What products can the 218T PET injection molding machine produce?
+
-
The AX218 PET is mainly designed for PET preform production, including water bottle, beverage, edible oil and other PET packaging preforms.
What is the injection weight of the AX218 PET?
+
-
The AX218 PET has an injection weight of 852 g based on PS material.
What is the screw diameter?
+
-
The standard screw diameter is 65 mm.
What is the injection rate?
+
-
The injection rate is 486 g/s.
How do I choose the right PET injection molding machine?
+
-
The machine should be selected according to preform weight, cavity number, required output, mold dimensions, injection capacity and cycle time.
Can the AX218 PET be customized?
+
-
Yes. Machine configuration can be adjusted according to the customer's preform design, mold and production requirements.
Download Brochure
Download AX218 PET Injection Molding Machine Brochure
Download the AX218 PET technical brochure for detailed machine specifications, configurations and application information.
