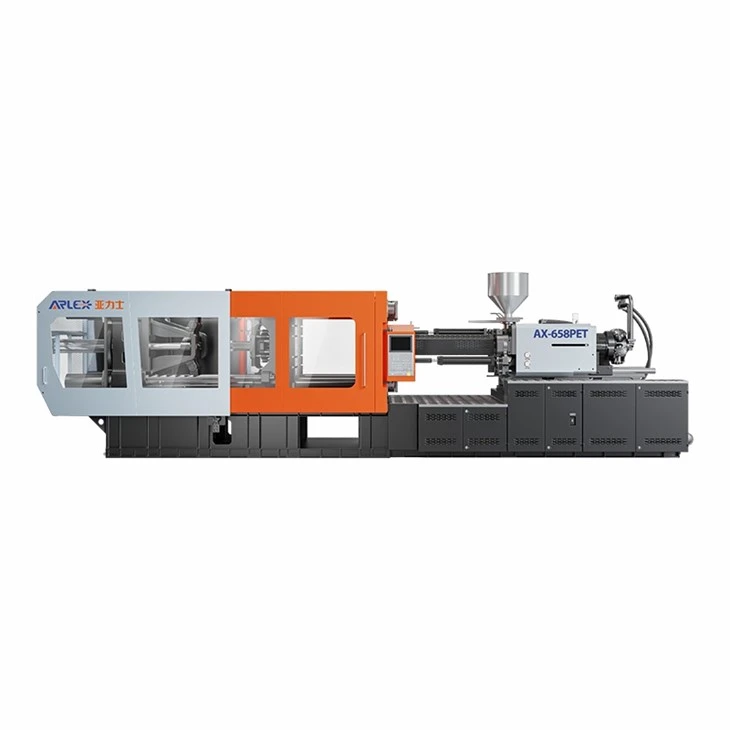

658T PET Plastic Injection Moulding Machine

658T PET Injection Molding Machine
AX658 PET Injection Molding Machine for High-Capacity PET Preform Production
Send Inquiry
Product Introduction

Ningbo Yalishi(Arlex) Plastic Machinery Co., Ltd. is one of the leading manufacturers and suppliers of 658t pet plastic injection moulding machine in China. Please feel free to wholesale advanced 658t pet plastic injection moulding machine made in China here from our factory.



658T PET Injection Molding Machine for High-Capacity PET Preform Production



Built for Higher-Capacity PET Preform Production
The ARLEX AX658 PET is a 6580 kN injection molding machine developed for high-capacity PET preform production. Equipped with a 110 mm injection screw, the machine provides a theoretical shot size of 4276 cm³, an injection weight of up to 4896 g and an injection rate of 812 g/s.
With its high-capacity injection unit, rigid clamping structure, optimized hydraulic system and precise process control, the AX658 PET is designed for demanding PET preform applications requiring high shot capacity and stable continuous production.

5680 kN

Clamping Force

110 mm

Screw Diameter

4896 g

Injection Weight

812 g/s

Injection Rate

PET bottle preform

Machine Type

Request a Quote



Product Overview



High-Capacity PET Molding for Demanding Production Requirements
The AX658 PET is designed for PET preform production where high shot capacity and fast, stable injection performance are essential. Its 6580 kN clamping force provides the mold support required for large PET preform applications, while the 110 mm injection screw delivers a theoretical shot size of 4276 cm³.
With an injection weight of up to 4896 g and an injection rate of 812 g/s, the AX658 PET provides substantial injection capacity for demanding production requirements.



Key Production Factors

  • Preform weight
  • Number of cavities
  • Injection capacity
  • Injection rate
  • Injection pressure
  • Mold dimensions
  • Cycle time
  • Required production output

Designed for Different PET Preform Requirements

01/

High Preform Weight

The large injection capacity supports PET preforms requiring higher shot weights and larger total shot volumes.

02/

Large-Cavity Production

The 6580 kN clamping force provides the mold support required for demanding multi-cavity PET preform applications.

03/

Fast Injection Requirements

An injection rate of up to 812 g/s provides high filling capacity for fast PET molding cycles.

04/

Large Shot Volume

The 4276 cm³ theoretical shot size provides sufficient injection volume for high-capacity PET preform production.

05/

Continuous Production

The rigid machine structure and optimized hydraulic and control systems are designed for stable operation during extended production cycles.



Applications



Applications of the 568T PET Preform Injection Molding Machine

Water Bottle Preforms

Water Bottle Preforms

For high-volume production of PET preforms used in bottled water packaging.

Carbonated Beverage Preforms

Carbonated Beverage Preforms

Suitable for PET preforms designed for carbonated soft drinks and other beverage applications.

Edible Oil Preforms

Edible Oil Preforms

For larger PET containers used for cooking oil and edible oil packaging.

Juice Beverage Preforms

Juice & Beverage Preforms

Suitable for PET packaging applications across juice, tea and other beverages.

Cosmetic Personal Care Preforms

Cosmetic & Personal Care Preforms

For PET containers where dimensional consistency and appearance are important.



Why Choose AX568 PET



icon

6580 kN Clamping Force

Provides strong mold support for large-scale PET preform production.

01

icon

110 mm Injection Screw

The large-diameter screw provides the injection capacity required for high-shot-weight applications.

02

icon

4896 g Injection Weight

Supports PET preform applications requiring a substantially higher total shot weight.

03

icon

812 g/s Injection Rate

Provides high injection capacity for rapid and controlled mold filling.

04

icon

Built for High-Capacity Production

The combination of high clamping force, large injection capacity and stable process control is designed for demanding continuous production.

05



Technical Specifications



AX658 Technical Specifications

Model AX658-PET
Screw Diameter 110 mm
Shot Size(Theoretical) 4276 cm3
Injection Weight(PS) 4896 g
Injection Rate 812 g/s
plasticizing capacity 230 g/s
Injection Pressure 120 Mpa
Screw Speed 0-125 rpm
Clamp Tonnage 6580 KN
Toggle Stroke 900 mm
Space Between Tie Bars 880*880 mm
Max Mold Height 900 mm
Min Mold Height 350 mm



Screw Configuration


110 mm PET Injection Screw

icon

Screw Diameter

110 mm

icon

Shot Size

4276 cm³

icon

Injection Weight

4896 g

icon

Injection Rate

812 g/s

icon

Injection Pressure

120 MPa

icon

Screw Speed

0–125 rpm

The final screw configuration should be selected according to product weight, material, mold design, required injection pressure and cycle time.

product-783-522
product-783-522

product-800-432



How to Determine the Right PET Machine Configuration



1

Preform Weight: Start with the weight of a single preform and calculate the total shot requirement.

2

Cavity Quantity: The number of cavities directly affects the required injection volume and production capacity.

3

Target Output: Define the required hourly or daily production before determining machine size and cycle requirements.

4

Mold Dimensions: Confirm mold dimensions and tie-bar requirements to ensure sufficient installation space.

5

Material Requirements: PET resin grade, recycled content and processing conditions should be considered during configuration.

6

Cycle Time: The required cycle determines the injection speed, cooling and overall machine response required for production.

Send us your preform drawing, weight, cavity number and target output for a recommended machine configuration.



Machine Details


Clamping Unit
Injection Unit
Control System
Servo Motor System
Hydraulic System



Clamping Unit

The reinforced clamping structure provides the rigidity and mold support required for high-tonnage PET molding, helping maintain stable mold movement during continuous operation.

Injection System

Multiple screw configurations allow the injection system to be matched to different shot volumes, preform weights and production requirements.

Control System

An industrial control platform provides centralized management of injection, pressure, temperature and machine movements, with interfaces for production monitoring and system expansion.

Servo Motor System

Closed-loop servo control adjusts power output according to machine demand, supporting responsive operation and efficient energy management.

Hydraulic System

The optimized hydraulic circuit coordinates machine movements with controlled pressure delivery, supporting responsive operation and stable positioning.



Factory / Production



658T PET Production in Action

Follow the AX658 PET through a complete molding cycle and see how the machine handles high-capacity PET preform production.



Customization

Configure the Machine Around Your PET Production

PET preform production requirements vary according to product weight, cavity count, mold design and target output. ARLEX can configure the machine according to the actual production conditions.



Configuration Factors

Screw diameter

Screw and barrel configuration

Injection pressure

Injection speed

Hydraulic system

Control system

Voltage and frequency

Auxiliary equipment

Automation requirements

Tell Us Your Product Requirements



FAQ



What is the clamping force of the AX658 PET injection molding machine?

+

-

The AX658 PET provides 6580 kN of clamping force, making it suitable for high-capacity PET preform production and demanding mold applications.

What screw diameter does the AX658 PET use?

+

-

The AX658 PET is equipped with a 110 mm injection screw designed for high-capacity PET processing.

What is the maximum injection weight of the AX658 PET?

+

-

The AX658 PET has a theoretical shot size of 4276 cm³ and an injection weight of up to 4896 g based on PS material.

What is the injection rate of the AX658 PET?

+

-

The maximum injection rate of the AX658 PET is 812 g/s, providing the injection capacity required for rapid PET preform mold filling.

What is the injection pressure of the AX658 PET?

+

-

The AX658 PET has a maximum injection pressure of 120 MPa.

What type of PET preforms can the AX658 produce?

+

-

The AX658 PET can be configured for high-capacity PET preform applications, including preforms for water bottles, carbonated beverages, edible oil containers and other PET packaging products. The suitable application depends on the preform weight, mold design and production requirements.

Is the AX658 suitable for large-cavity PET preform production?

+

-

The 6580 kN clamping force and high-capacity injection system provide the machine capacity required for demanding multi-cavity PET preform applications. The final suitability should be confirmed based on cavity number, preform weight, mold dimensions and cycle time.

How do I know whether the AX658 PET is suitable for my preform?

+

-

Machine selection should be based on the preform weight, cavity number, total shot requirement, mold dimensions, target output and cycle time. Send us your preform drawing or specifications and we can evaluate the required machine configuration.

Can the AX658 PET be customized for different production requirements?

+

-

Yes. The machine configuration can be adapted according to the actual PET preform, mold and production requirements, including injection configuration, mold specifications, electrical standards and auxiliary equipment.

What information should I provide when requesting an AX658 PET quotation?

+

-

Please provide the preform weight, cavity number, preform drawing, mold dimensions, target production quantity, PET material and destination country. These details allow us to recommend a suitable configuration and auxiliary equipment.



Download Brochure



Download AX658 PET Injection Molding Machine Brochure

Get detailed specifications, machine configuration and technical information for the AX658 PET injection molding machine.

Download Brochure
