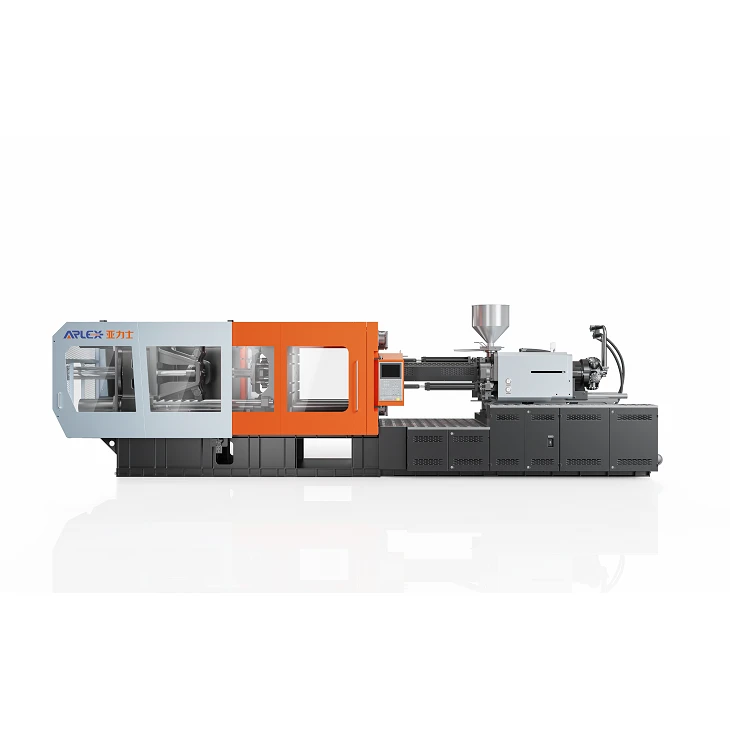

478T Fruit Crate Plastic Injection Moulding Machine
AX478 Fruit Crate Injection Molding Machine for High-Output and Stable Crate Production
Ningbo Yalishi(Arlex) Plastic Machinery Co., Ltd. is one of the leading manufacturers and suppliers of 478t fruit crate plastic injection moulding machine in China. Please feel free to wholesale advanced 478t fruit crate plastic injection moulding machine made in China here from our factory.
AX478 Fruit Crate Injection Molding Machine for High-Output and Stable Crate Production
More Injection Capacity for Larger Crate Molds
Large crate molds place greater demands on injection capacity, mold filling speed and clamping stability. The AX478 is configured to address these requirements with 4780 kN of clamping force, a 95 mm injection screw and a maximum injection rate of 674 g/s.
The machine is suitable for production where larger crate dimensions, higher material charges or more demanding filling conditions require additional molding capacity.
4780 kN
Clamping Force
95 mm
Screw Diameter
2515 g
Injection Weight
674 g/s
Injection Rate
Fruit Crate Injection Molding Machine
Machine Type
Product Overview
A Balanced Configuration for Larger Crate Molding
The AX478 combines a 2764 cm³ theoretical shot volume with a 2515 g injection weight and 674 g/s injection rate. This configuration provides additional injection capacity for crate molds requiring higher material volume and efficient cavity filling.
The 4780 kN clamping system provides the closing force needed to maintain mold stability during the molding cycle, making the AX478 suitable for larger agricultural crates, storage crates and logistics containers.
Designed for Different PET Preform Requirements
Large Crate Dimensions
Provides the clamping capacity and mold space required for large-format fruit and vegetable crate molds.
Ribbed & Deep-Cavity Structures
Suitable for crate designs with reinforced ribs, deep cavities and complex structural features.
Higher Shot Weight
The high-capacity injection unit supports large resin charges required for heavier crate products.
Fast Mold Filling
A high injection rate helps fill large crate cavities efficiently and supports stable product formation.
Continuous Production
Designed for repeated molding cycles in demanding production environments.
Applications
Applications of the AX478 Fruit Crate Plastic Injection Molding Machine
Agricultural Fruit Crates
For ventilated plastic crates used to collect, transport and store fruits.
Vegetable & Produce Crates
Reusable crates for vegetable handling, distribution and agricultural logistics.
Stackable Storage Crates
Durable stackable containers for warehouses, markets and storage facilities.
Logistics & Transport Totes
Heavy-duty plastic containers for material handling and logistics operations.
Heavy-Duty Plastic Baskets
Rigid plastic baskets designed for repeated handling and demanding working environments.
Why Choose AX478
High Clamping Capacity
4780 kN of clamping force provides stable mold closing performance for large fruit crate molds.
01
High-Capacity Injection Unit
The 95 mm injection screw provides the shot capacity required for large structural plastic products.
02
Fast Injection Performance
A maximum injection rate of 674 g/s supports efficient filling of large and ribbed crate cavities.
03
Stable Structural Molding
The machine is designed to maintain consistent molding performance for products with ribs, deep cavities and large projected areas.
04
Production-Oriented Design
The AX478 is configured for repeated production cycles and demanding fruit crate manufacturing environments.
05
Technical Specifications
AX478-Fruit Crate Technical Specifications
| Model | AX478-Fruit Crate |
| Screw Diameter | 95 mm |
| Shot Size(Theoretical) | 2764 cm3 |
| Injection Weight(PS) | 2515 g |
| Injection Rate | 674 g/s |
| plasticizing capacity | 68 g/s |
| Injection Pressure | 121 Mpa |
| Screw Speed | 0-155 rpm |
| Clamp Tonnage | 4780 KN |
| Toggle Stroke | 770 mm |
| Space Between Tie Bars | 780*780 mm |
| Max Mold Height | 800 mm |
| Min Mold Height | 300 mm |
Screw Configuration
95 mm Injection Screw
The AX478 Fruit Crate Injection Molding Machine is equipped with a 95 mm injection screw configuration designed to provide the shot capacity and plasticizing performance required for large crate production.
How to Select the Right Fruit Crate Injection Molding Machine
Crate Dimensions: Start with the length, width and height of the finished crate to determine the required mold and machine size.
Crate Weight: Product weight helps determine the required shot capacity and injection unit configuration.
Projected Area: The projected area of the crate is an important factor when determining the required clamping force.
Mold Dimensions: Check mold dimensions, tie-bar spacing, mold height and mold weight to ensure proper installation on the machine.
Material: Specify the resin being used, such as virgin PP, recycled PP or HDPE, together with the required processing conditions.
Target Output: Define the required production quantity and cycle time to determine the machine capacity and production configuration.
Send us your preform drawing, weight, cavity number and target output for a recommended machine configuration.
Machine Details
Clamping Unit
A rigid clamping structure provides stable mold closing force and supports large-format crate molds during repeated production cycles.
Injection System
The high-capacity injection unit delivers the shot volume and injection speed required for large structural crate products.
Control System
An intuitive control system allows operators to manage key molding parameters and monitor machine operation efficiently.
Ejection System
The reinforced ejection system supports reliable demolding of large crate products with deep cavities and extensive rib structures.
Hydraulic System
The hydraulic system provides controlled machine movements and stable pressure performance throughout the molding cycle.
Factory / Production
AX478 Fruit Crate Machine in Production
See the AX478 in operation, from plasticizing and injection to crate ejection and finished product handling.
Customization
Configured for Your Crate Production
Screw & Injection Configuration
Configured according to product weight and material requirements.
Mold Dimensions
Machine configuration can be matched to the required crate mold dimensions.
Ejection Configuration
Ejection requirements can be considered for deep-cavity and large structural crate molds.
Control System
Control configuration can be adapted to different production requirements.
Voltage & Frequency
Electrical configuration can be prepared according to the customer's factory requirements.
Auxiliary Equipment
Automation and auxiliary equipment can be integrated according to the production process.
Tell Us Your Product Requirements
FAQ
What products can the AX478 produce?
+
-
The AX478 is designed for plastic fruit crates, vegetable crates, storage crates, logistics totes and other large structural plastic containers.
What is the clamping force of the AX478?
+
-
The AX478 provides a maximum clamping force of 4780 kN.
What is the screw diameter of the AX478 Fruit Crate Machine?
+
-
The AX478 Fruit Crate Injection Molding Machine uses a 95 mm injection screw.
What is the maximum injection weight?
+
-
The maximum injection weight is 2515 g, based on PS material.
What is the injection rate of the AX478?
+
-
The maximum injection rate is 674 g/s.
Can the AX478 produce large ribbed crates?
+
-
Yes. The machine is designed for large structural plastic products with ribbed and deep-cavity features.
How do I know if the AX478 is suitable for my crate mold?
+
-
The selection should be based on crate dimensions, product weight, projected area, mold dimensions, material and required production output.
Can ARLEX configure the machine for automatic crate production?
+
-
Automation and auxiliary equipment can be configured according to the customer's production process and factory requirements.
Download Brochure
Download AX478 Fruit Crate Machine Brochure
Get detailed technical specifications, machine dimensions and configuration information for the AX478 Fruit Crate Injection Molding Machine.
